Main Help Page    /    Alerts

Setting up alerts

AirData's email alerts allow you to stay in the loop when important events take place with pilots, equipment, and maintenance.

This help page will cover the types of alerts we offer, and how to set them up!

Alert categories

The three different alert types are "Equipment", "Pilot Behavior", and "Maintenance." To see what each alert entails, head to "MANAGE" -> "ALERTS" -> "Add Alert."

Equipment alerts

Equipment alerts allow you to remain informed about the health of your batteries.

equipment alert

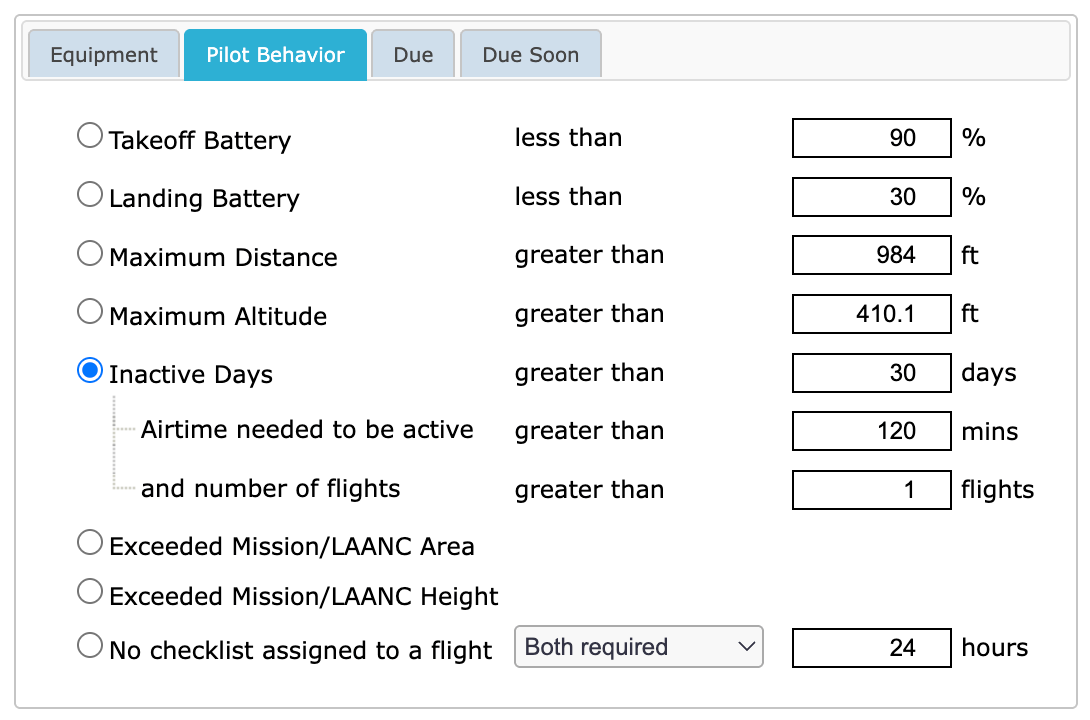

Pilot behavior alerts

Pilot behavior alerts make it easy to track teams that have two, or two hundred pilots.

pilot behavior alert

Maintenance alerts

Stay informed with what drone or battery needs servicing, with maintenance alerts. "Due" will notify you when the maintenance is due, and "Due soon" will notify you when 75% of the maintenance cycle is complete.

maintenance alert

Creating a new alert

While under the "ALERTS" tab, click on "Add Alert" in the top left. Choose between the type of alert and proceed to configure its settings. Each alert type has the following settings.

add new equipment alert

Name:

A name that describes the alert will be pre-populated by default, but feel free to change it if necessary.

Message:

Any text added here will be included in the email that is sent to the recipients when the alert is triggered.

Trigger:

Choose the action that will trigger this particular alert. You need to set up multiple alerts if you want to be alerted for more than one trigger. Fore instance, if you want to be alerted when the battery temperature exceeds a certain number and when there are deviations, you need to set up two separate alerts.

Note that you can edit the parameters to for each alert trigger. For example, you can change the 140 degrees under "Battery Temperature" to 130 degrees, if that is what your operators manual calls for.

Equipment:

Leaving it on the default "Any Equipment Type" is a common practice. However, you have the option to select this dropdown and choose a specific piece of equipment.

Under the "Pilot Behavior Alert", the "Equipment:" section will say "Pilots:", as seen below.

alert equipment and pilot selection

Recipients:

Add as many emails as necessary under "Recipients" - checking the "Also notify the Pilot-in-Command" box will send an email to the pilot in the event where this alert is triggered, without having to place their email in the "Recipients:" section.

Locating triggered alerts

There are three separate locations where you can find alerts that have been triggered.

On the ALERTS page

While on the "ALERTS" page, all alerts that you set up will be displayed on the left-hand side. Any triggered alerts will populate in the center section.

alert overview section

Clicking on a triggered alert will list each date/time the alert was triggered, the flight it was triggered on, the equipment/pilot, and the trigger. Clicking on the alert from the list on the left-hand side will display that alert's history as well, along with a settings tab.

alert history

On the HOME page

For a quick glance at recently triggered alerts, refer to the "ALERTS" section on on the "HOME" page. Click on any of the alerts in this section to learn more about it.

alers on home page

On the AirData UAV Android app

Lastly, tapping on the "bell" icon in the AirData UAV Android app will display triggered alerts. We look to add this feature to our AirData UAV iOS app in the future!

triggered alerts airdata uav android app
