3D Flight Player
| Feature availability |   |  |  |  |  |
|---|
The AirData 3D Flight Player provides high-resolution playback of your flights.
To access it, open a flight from My Logs -> Flights, and click the 3D Player tab.
The 3D Player can be used for pilot training, auditing, and other flight analysis workflows.
1. Controls and Overlay
To access it, open a flight from My Logs -> Flights, and click the 3D Player tab.
The 3D Player can be used for pilot training, auditing, and other flight analysis workflows.
1. Controls and Overlay
Controls and Overlay
Camera settings can be changed using the controls on the left side of the screen.
Clicking the drone icon will cause the player camera to follow the perspective of the drone.
Clicking the drone icon will cause the player camera to follow the perspective of the drone.
Map size can be changed from the top right of the 3D Player.
You can also revert to a 2D view, close the player, or enter full screen mode.
You can also revert to a 2D view, close the player, or enter full screen mode.
Control stick inputs can be viewed in the bottom right corner.
These inputs are derived from the timestamped data in the flight log and can be useful for pilot training or forensics.

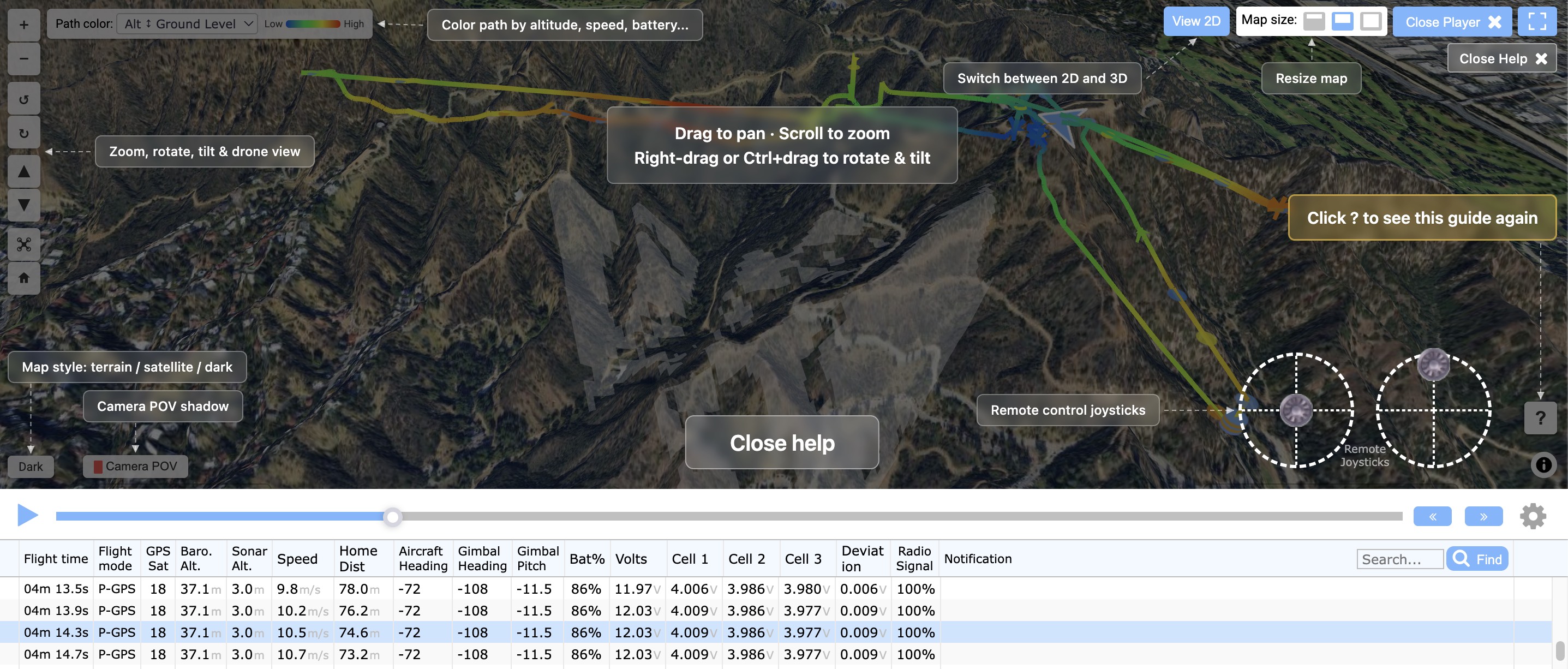

Clicking the question mark icon here will open the player’s help overlay.
These inputs are derived from the timestamped data in the flight log and can be useful for pilot training or forensics.
Clicking the question mark icon here will open the player’s help overlay.
Flight map graphics can be changed to Terrain, Satellite, or Dark mode in the bottom left of the screen.
The drone’s camera point of view can also be turned on and off here.
The drone’s camera point of view can also be turned on and off here.
How Playback Works
The 3D Flight Player provides a graphical representation of the telemetry data from your synced flight logs.
The drone’s flight path and field of view are projected onto a map, taking into account obstacles, terrain changes, camera gimbal pitch, etc.
Data Resolution
Telemetry data is shown below the player map at a resolution of once per 1 to 4 milliseconds, depending on available info in the flight log.
You can click the gear icon at the top right of the data table to edit what columns are visible.
You can click the gear icon at the top right of the data table to edit what columns are visible.
Playback Settings
Playback can be augmented to highlight specific flight metrics.
The flight path is color-coded to reflect changes in key values such as Altitude, Battery Charge, and Distance from Home.
The flight path is color-coded to reflect changes in key values such as Altitude, Battery Charge, and Distance from Home.
Currently, the flight route can be configured to reflect the following data fields.
- Altitude from Ground at Takeoff
- Altitude from Ground at Drone Location
- Speed
- Battery Charge
- Distance from Home Point
- Radio Signal Strength
- Number of GPS Satellite Connections
- Terrain Type Beneath Drone
You can read more about these data fields here: https://app.airdata.com/wiki/Help/Downloadable+Flight+Data+CSV
Terrain and Field of View
The drone’s field of view can be made visible by clicking the Camera POV button in the bottom left of the flight map.
This field of view takes into account the gimbal pitch, gimbal heading, and any obstacles that would obstruct the view of the drone’s camera.
